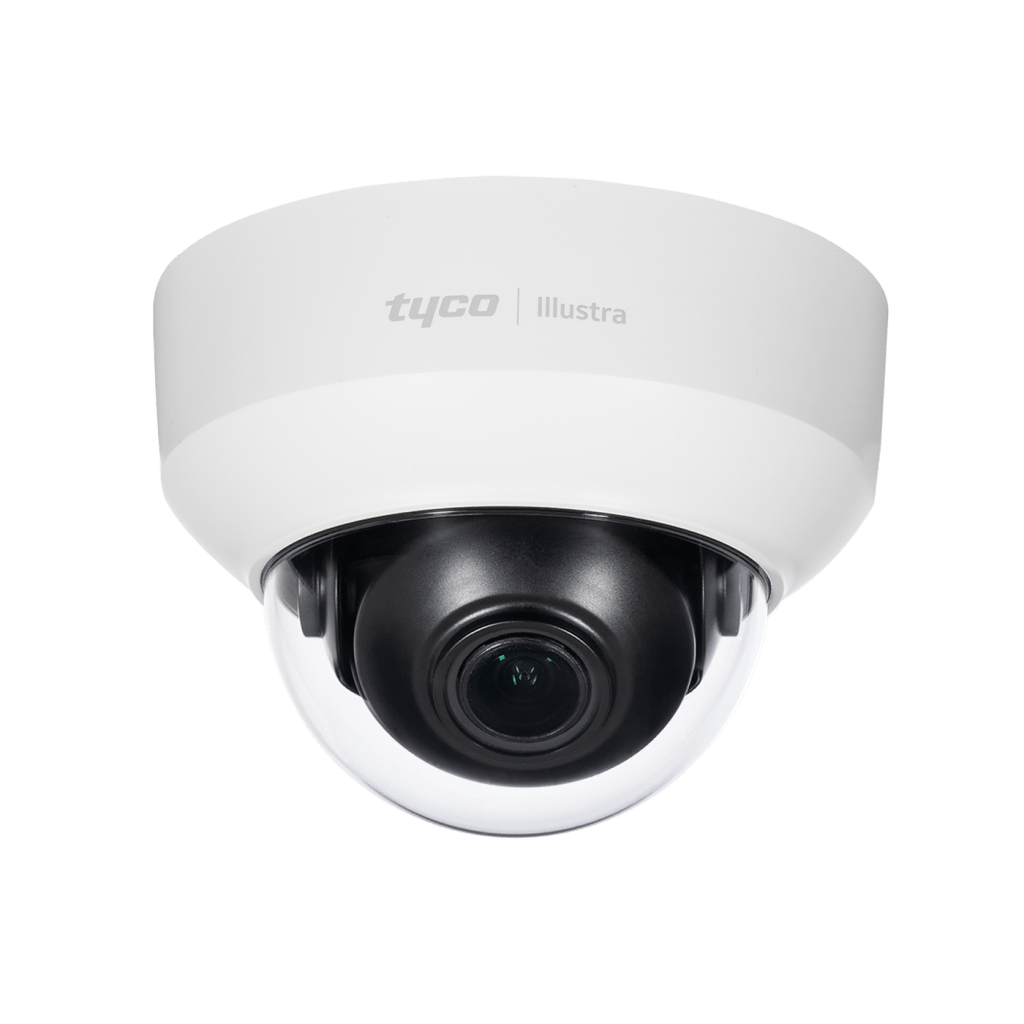

Flex Gen3 3MP Indoor Mini-Dome

Camera Features

Easy to install with engineer friendly accessories and WiFi configuration
Built-in tamper detection for scene change, lens obscuration or blinding light.
High speed detection with 60FPS in 2MP resolution
3MP resolution provides true HD quality images with video analytics along with improved WDR
VideoEdge® TrickleStor technology for edge-based failover redundancy
Day/Night functionality allows quality video recording in low light conditions
Illustra® IntelliZip offers powerful video compression technology for bandwidth management
Included in the Johnson Controls Cyber Solutions Product Security Program
As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies

Contact / Request a Quote

First name

Last name

Company Name

Country

State/Region

Job Function

Business Phone

Nature of Inquiry

Please identify the reason of your inquiry

Email Consent

Yes, I wish to receive marketing emails about security solutions from Johnson Controls Security

No, I do not wish to receive marketing emails about security solutions from Johnson Controls Security

Privacy Notice

By completing the above form and checking this box you confirm that you have read, understood and accepted our Privacy terms as well as our Cookie terms. Read our Privacy Policy

Camera Features	Flex Gen3 3MP Indoor Mini-Dome
Audio	Yes, utilising cable accessory
Alarm Input/Output	One Out/One In, utilising cable accessory
Corridor Mode	Yes, Mirror & Flip
Day/Night	Auto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B&W
Digital Noise Reduction	2D&3DNR
Dimensions	132 x 98 mm (5.20 x 3.86 in)
Ethernet	RJ-45(10/100BASE-T)
Field of View	Wide Angle: 94.7°/68.7° Telephoto: 29.34°/22°
Focal Length	3.2 ~ 10mm
Focus	Motorized varifocal, P-Iris
Focus Control	Simple focus, (software controls: one-touch AF and manual control)
Gain Control	Automatic & Manual (3dB increments)
H.264	Yes
H.265	Yes
Housing Color	White
Imager	1/2.8” 3.21MP CMOS
IntelliZip	Yes
Lens Type	Varifocal
Max Frame Rate	60fps @ 2MP
Minimum Illumination	Color: min 0.05 lux (1/30sec, 30IRE) BW: 0.005Lux
MJPEG	Yes
Motion Detection	Yes, 3 Zones
Onboard Storage	micro SDXC up to 512GB
ONVIF Compliant	Profile S
Operating Temperature	-20°C to +50°C (-4°F ~ +122°F)
Power Draw	24 VAC: Max 7.2W PoE: Max 7.0W
Power Input	24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1)
Privacy Zones	9
Resolution Options	2048x1536/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 640x480/ 640x360/ 480x360/ 384x288
Supported Protocols	TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
S/N Ratio	50db
Vandal-Resistant	IK08
Video Streams	3
Weight	0.71kg (1.57 lbs)
White Balance	Automatic Wide, Automatic Normal (Default), Manual
Wide Dynamic Range	True WDR 140db Technologies

Flex Gen3 3MP Indoor Mini-Dome

Camera Features

Guides

A&E Specifications

Data Sheets

Firmware

Manuals

Quick Start Guide

Regulatory Information

Release Notes

Technical Drawings

Contact / Request a Quote

Please select your preferred site

Model No.
IFS03-D21-AT03	Illustra Flex 3MP Gen3 Dome, 3.2-10mm, Indoor, IK08, TDN, WDR
