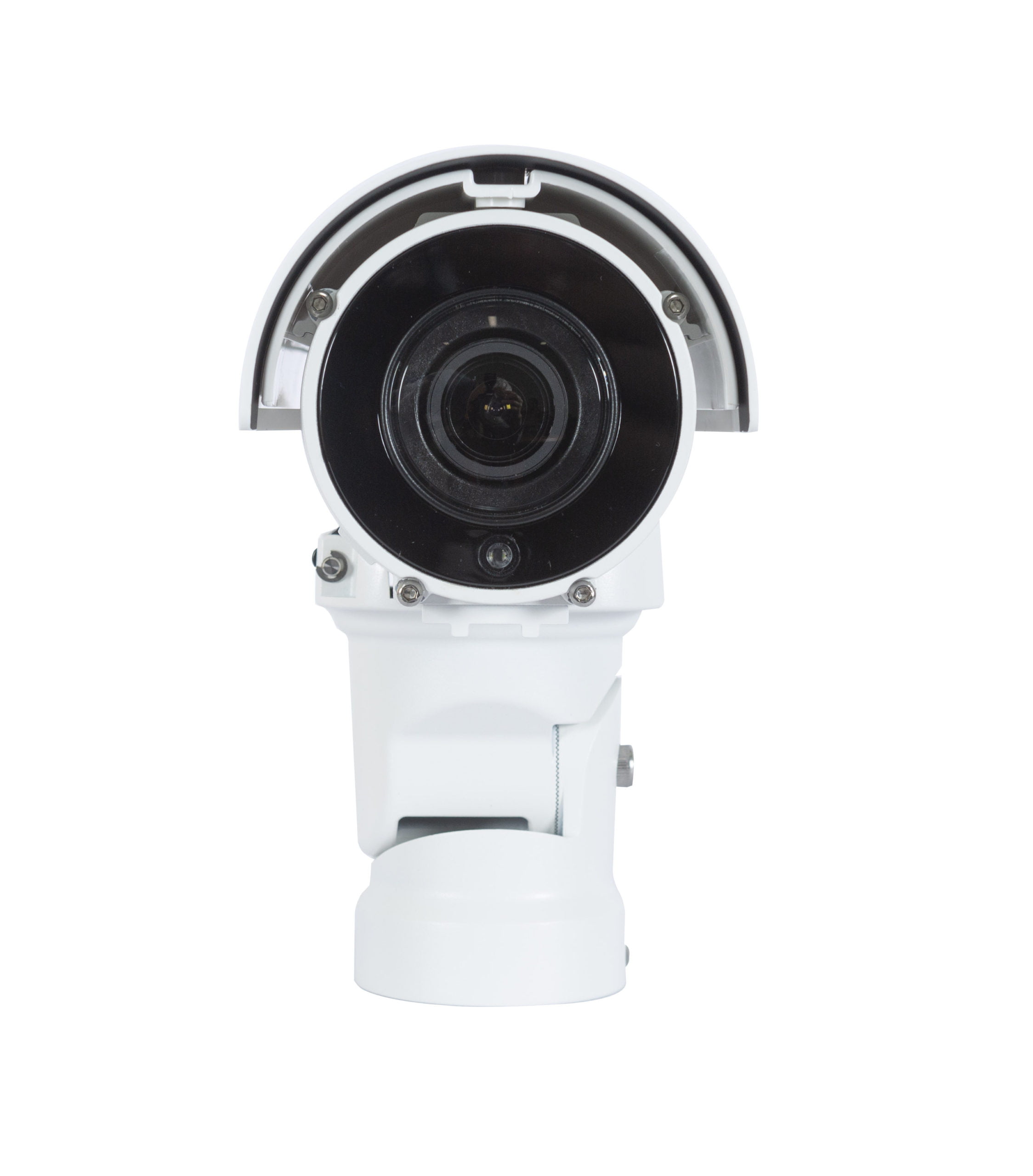

Illustra Pro
Gen3 Bullet
- Enriched video quality with reduced configuration time.
- Smart technologies with optimized video quality.
Pro Gen3 Bullet
Please choose the product part number
IPS02-B12-OI03
Illustra Pro 2MP Bullet, 2.7-13.5mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS02-B15-OI03
Illustra Pro 2MP Bullet, 4.7-47mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS03-B12-OI03
Illustra Pro 3MP Bullet, 2.7-13.5mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS03-B15-OI03
Illustra Pro 3MP Bullet, 4.7-47mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS05-B12-OI03
Illustra Pro 5MP Bullet, 2.7-13.5mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS05-B16-OI03
Illustra Pro 5MP Bullet, 13-55mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS08-B13-OI03
Illustra Pro 8MP Bullet, 3.6-10mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
IPS08-B16-OI03
Illustra Pro 8MP Bullet, 13-55mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
0
You might want one of these...
ADCDMPOLE
Pole Mount Adapter, White
0
ADCDMCRNRO
Corner Mount Adapter, White
0
You might want one of these...
You might want one of these...
Features in Action
Pro 2MP, 3MP, 5MP & 8MP Bullets
Enriched Video Quality With Reduced Configuration Time
The Illustra Pro Gen3 Bullet maximizes video quality while minimizing installation costs and configuration time. Powerful integrated IR provides uninhibited images in total darkness up to 197ft away for standard Pro Gen3 Bullet and up to 230ft away for Telephoto Pro Gen3 Bullet. Multiple mounting options featuring easily accessible cable ports simplify installation. Building off the previous generation of cameras, the Pro Gen3 Bullet improves on important features such as Wide Dynamic Range, effective failover redundancy, cybersecurity, and Video Intelligence Analytics. Available in a range of resolutions and lens options, the Pro Gen3 Bullet can be added to a variety of deployments in both medium and large-sized facilities.
Camera Features
- Pole/pendant mount and arm included for mounting flexibility Profile settings allow the bullet to adapt to scenarios such as retail, gaming, and more
- Demo mode out of the box requires minimal adjustments
- Easily accessible ports simplify installation
- Electronic Image Stabilization keeps the field of view steady in harsh conditions
- Improved accuracy for facial detection with updated library and algorithms
- Equipped with Illustra Video Intelligence Analytics
- Designed to be resilient against cyber-attacks
- Resources
- Specification
- Part Numbers
- What's in the box
Guides
A&E Specifications
Data Sheets
Images
Manuals
Regulatory Information
Release Notes
Technical Drawings
| Camera Features | Pro Gen3 Bullet |
| Alarm Input/Output | 2-1 |
| Day/Night | Yes |
| Dimensions | 2MP/3MP:- Std lens: Ø3.15 x 8.07in (Ø79.9 x 205mm), Telephoto lens: Ø3.15 x 8.54in (Ø79.9 x 217mm) | 5MP/8MP:- Std lens: Ø3.15 x 8.07in (Ø79.9 x 205mm), Telephoto lens: Ø3.15 x 9.27in (Ø79.9 x 235.5mm) |
| Dynamic Range | 2MP,3MP,8MP: True WDR 120 dB Technologies | 5MP: True WDR 110 dB Technologies |
| Environment Rating | IP67 |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | 2MP:- 112°/58° (Standard), 62.2°/37° (Telephoto) 3MP:- 100°/73° (Standard), 58°/45° (Telephoto) 5MP:- 103°/74° (Standard), 25°/19° (Telephoto) 8MP:- 95°/53° (Standard), 33°/17° (Telephoto) |
| Focal Length | 2MP/3MP:- 2.7-13.5mm, 4.7-47mm | 5MP:- 2.7-13.5mm, 13-55mm | 8MP:- 3.6-10mm, 13-55mm |
| Focus | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White - RAL 9003 |
| Imager | 2MP/3MP/5MP:- Progressive Scan RGB 1/2.7” CMOS | 8MP:- Progressive Scan RGB 1/1.8” CMOS |
| IntelliZip | Yes |
| IR Distance | Up to 70m for outdoor model |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 2MP @ 60 fps, 3MP @ 30fps, 5MP @ 30 fps, 8MP @ 30 fps |
| MJPEG | Yes |
| Motion Detection | 3 Zones |
| Onboard Storage | Micro SDXC up to 512GB |
| ONVIF Compliant | Profile S |
| Power Draw | PoE 18.2W, 24 VAC 30.5W |
| Power Input | Power over Ethernet+ (PoE+) IEEE 802.3at Class 4 (48V 0.38A); 24 VAC 1.27A 50/60Hz |
| Privacy Zones | 9 |
| Resolution Options | 2MP:- 1920x1080 , (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x720, (720p) 16:9, 1024x576 (PAL+) 16:9, 960x544 (qHD) 16:9, 816x464 16:9, 640x360 (nHD) 16:9, 480x360 4:3 3MP:- 2048x1536 4:3, 1920x1080 , (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x960 4:3, 1280x720, (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (VGA) 4:3, 640x360 (nHD) 16:9, 480x360 4:3, 384x288 4:3 5MP:- 2592x1944 4:3, 2560x1440 16:9, 2048x1536 4:3, 1920x1080 (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x960 4:3, 1280x720, (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (VGA) 4:3, 640x360 (nHD) 16:9, 480x360 4:3, 384x288 4:3 8MP:- 3840x2160 (4K) 16:9, 3264x1840 16:9, 2688x1520 16:9, 2560x1440 16:9, 1920x1080, (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x720 (720p) 16:9, 1024x576 (PAL+) 16:9, 960x544 (qHD) 16:9, 816x464 16:9, 640x360 (nHD) 16:9, 480x272 16:9 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, HTTPS, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| Vandal-Resistant | IK10 |
| Video Streams | Quad |
| Weight | 2MP/3MP:- Std lens: 4.3lb (1.9kg), Telephoto lens: 4.5lb (2kg) | 5MP/8MP:- Std lens: 4.3lb (1.9kg), Telephoto lens: 5lb (2.2kg) |
| Wide Dynamic Range | 2MP/3MP:- Triple Exposure, True WDR 120 dB Technologies | 5MP/8MP:- Dual Exposure, True WDR 110 dB Technologies |
Camera Part Numbers
| Model No. | |
| IPS02-B12-OI03 | Illustra Pro 2MP Bullet, 2.7-13.5mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS02-B15-OI03 | Illustra Pro 2MP Bullet, 4.7-47mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS03-B12-OI03 | Illustra Pro 3MP Bullet, 2.7-13.5mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS03-B15-OI03 | Illustra Pro 3MP Bullet, 4.7-47mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS05-B12-OI03 | Illustra Pro 5MP Bullet, 2.7-13.5mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS05-B16-OI03 | Illustra Pro 5MP Bullet, 13-55mm, TDN w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS08-B13-OI03 | Illustra Pro 8MP Bullet, 3.6-10mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
| IPS08-B16-OI03 | Illustra Pro 8MP Bullet, 13-55mm, TDN, w/IR, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR |
What's in the box
- 4 x plastic screw anchors (use on masonry walls and wood)
- 4 x Phillips pan head tapered screw TP6x32mm (use on masonry wall and wood) · 4 x Phillips pan head tapered screw M5x8mm (Adaptor plate base)
- 1 x Printed Quick Start Guide
- 1 x Printed regulatory document
- 1 x NTSC / PAL output female BNC cable
- 1 x RJ45 Connector · 1 x Terminal block
- 1 x Mounting arm
- 1 x Mounting template
- 1 x Desiccant bag
- 4 x Toggle screw (Expansion Bolt)
- 1 x T10 security Torx wrench
- 1 x Universal electrical box mounting plate (IPSMDEBPLATE)
- 1 x Pendant / pole mount adaptor
- 1 x rubber plug (with two holes) and 1 rubber pin
- 1 x rubber plug (with no holes)
- 1 x 4mm Allen key
