Pro Gen2 2MP Micro

Please choose the product part number

IPS02HFANWST2

Illustra Pro 2MP Micro, 2.8mm, indoor, non-vandal, white, SDN, TWDR*

0

Pro Gen2 2MP Micro

Exceptional Video Quality for Discrete Applications

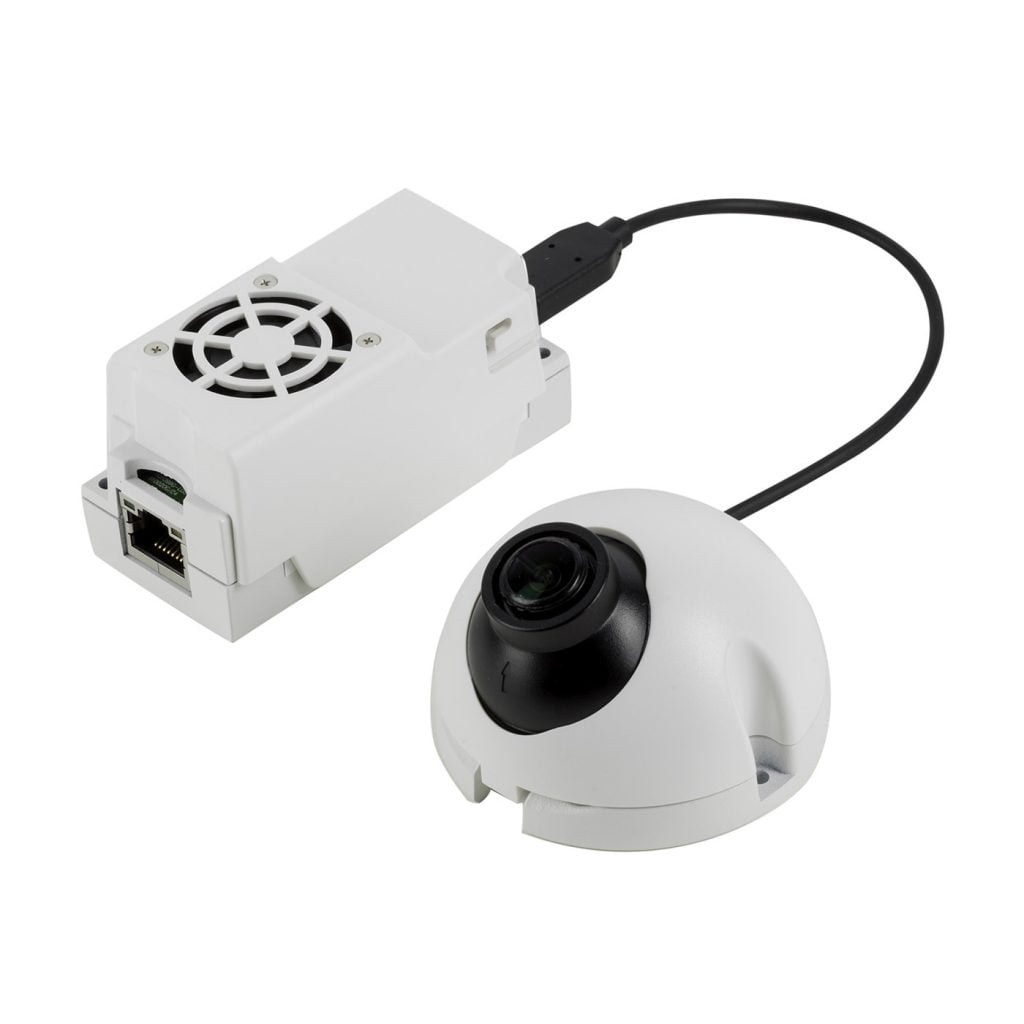

​The Illustra Pro Micro comes with a range of features for discrete installations. The lens can be placed up to 20ft (6m) from the camera body with an included cable allowing for a variety of deployment options. Wide Dynamic Range combined with the small size makes this product suited for applications such as ATMs, elevators, and entrances where backlighting can be a challenge. Finally, the camera is equipped with various viewing angles including horizontal view and corridor mode to ensure important details are captured without wasting the field of view.

Camera Features

  • 2MP up to 60 fps
  • Low-profile design allows for discrete deployments
  • No additional licensing cost when adding to VideoEdge NVRs
  • Corridor Mode for viewing in vertically oriented scenes
  • Illustra® IntelliZip offers powerful video compression technology for bandwidth management
  • True Wide Dynamic Range balances challenging lighting conditions
  • Edge-based failover redundancy to provide camera-to-NVR connectivity
  • ONVIF Profile S compliant for simplified integrations
  • Adheres to the Johnson Controls Cyber Solutions Product Security Program
  • As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Kamerafunktionen Pro Gen2 2MP Micro
Day/NightYes
Environment RatingIndoor
H.264Yes
H.265Yes
Horizontal FOV116°
Housing ColorWhite
Imager1/2.8” CMOS, Progressive Scan
IntelliZipYes
Lens TypeFixed
MJPEGYes
Onboard StorageMicro SDXC Slot Up to 128GB
ONVIF CompliantYes
Power InputIEEE 802.3af/802.3at Type 1 Class 3, 8.5W
Resolution Options2MP, 1MP, 1080p, 1664x936, 720p, PAL+, 960x544, 800x456, nHD, 480x272

Kamera-Bestellnummern

Modellnummer
IPS02HFANWST2Illustra Pro 2MP Micro, 2.8mm, indoor, non-vandal, white, SDN, TWDR*
