Illustra Flex Gen4
2MP, 4MP, 8MP Mini-Domes
Edge Intelligence Driven by Deep Learning AI,
Versatility and Easy Install
Flex Gen4 2MP, 4MP, 8MP Mini-Domes
Please choose the product part number
IFS02-D12-ITA4
Illustra Flex Gen4 2MP Mini-Dome, 2.7-13.5mm, Indoor, IP67, IK10, TDN, SMK, TWDR
0
IFS04-D12-ITA4
Illustra Flex Gen4 4MP Mini-Dome, 2.7-13.5mm, Indoor, IP67, IK10, TDN, SMK, TWDR
0
IFS08-D13-ITA4
Illustra Flex Gen4 8MP Mini-Dome, 3.6-11mm, Indoor, IP67, IK10, TDN, SMK, TWDR
0
IFS02-D12-OIA4
Illustra Flex Gen4 2MP Mini-Dome, 2.7-13.5mm, Outdoor, IP67, IK10, TDN w/IR, TWDR
0
IFS04-D12-OIA4
Illustra Flex Gen4 4MP Mini-Dome, 2.7-13.5mm, Outdoor, IP67, IK10, TDN w/IR, TWDR
0
IFS08-D13-OIA4
Illustra Flex Gen4 8MP Mini-Dome, 3.6-11mm, Outdoor, IP67, IK10, TDN w/IR, TWDR
0
You might want one of these...

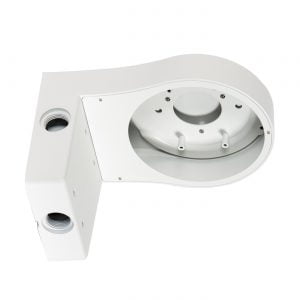

IPSMDWALL3
Mini-Dome Wall Mount, White
0

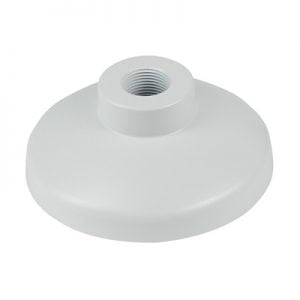

ADCI6DPCAPIW
Pendant Cap, White
0
ADLOMARM
Gooseneck Mounting Arm, White
0
ADCDMPOLE
Pole Mount Adapter, White
0

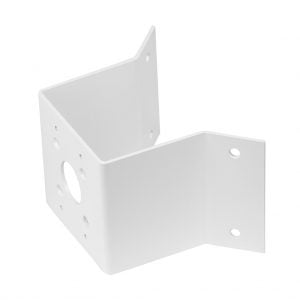

ADCDMCRNRO
Corner Mount Adapter, White
0

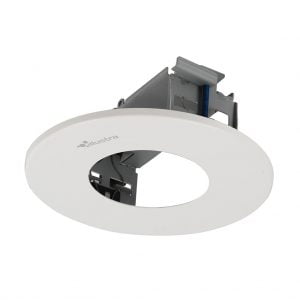

IFDRECMNT
Mini-Dome Recessed Mount, White
0
IA-KIT-WD-UUA
Micro USB On-The-Go (OTG) Adapter Cable with USB Wireless Network Adapter
0
IA-HDM-OD-F4D
HDMI Adaptor Cable
0

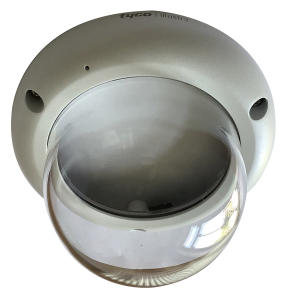

IA-BBL-CV-F4D
Flex Gen4 Mini-Dome Bubble, Clear
0

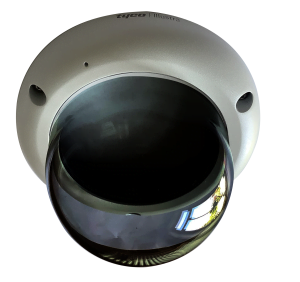

IA-BBL-SV-F4D
Flex Gen4 Mini-Dome Bubble, Smoked
0
You might want one of these...
You might want one of these...
Illustra Flex Gen 4 Mini-Domes are powered by the rise of intelligence at the edge. With built-in AI based object classification, events can be narrowed to classes such as person, car, bus, motorcycle and more.
Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
The powerful Illustra Flex Mini-Domes are designed to offer a superior image quality, feature rich surveillance option for a wide range of applications.
Camera Features
- 2MP, 4MP & 8MP resolution provides true HD quality images with video analytics along with improved WDR
- Built in AI delivers accurate object classification, powerful situational awareness and security automation
- Increased IR distance
- VideoEdge® TrickleStor technology for edge-based failover redundancy
- Easy to install with user friendly accessories and Wi-Fi configuration
- 5YR Warranty
- Accessoires
- Ressources
- Specification 2MP
- Specification 4MP
- Specification 8MP
- N° de référence
- What's in the box
Camera Accessories
Guides
A&E Specifications
Fiches techniques
Micrologiciels
Manuels
Quick Start Guide
Informations réglementaires
Notes de publication
| Fonctions de la caméra | Flex Gen4 2MP, 4MP, 8MP Mini-Domes |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | Person, Bicycle, Bus, Car, Motorbike, Train, Truck |
| Day/Night | True Day/Night CF Removal |
| Dimensions | Ø123mm x 107mm (4.85 in x 4.21 in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Field of View | Field of View Wide (H/V): 112°/58° Field of View Telephoto (H/V): 35°/20° |
| Focal Length | 2.7-13.5mm |
| Focus Control | One Touch Auto-Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Imager | 1/2.8” Sony IMX327 CMOS |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.04 Lux; B/W, 1/4s, 30 IRE, AGC: 0.02 Lux; W/IR: 0.0 Lux |
| Motion Detection | 3 zones |
| ONVIF Compliant | Profiles S, G, M |
| Operating Temperature | Indoor: -10°C to +60°C; Outdoor: -50°C to +60°C |
| Outdoor Rating | IP66/IP67 |
| Power Draw | Indoor: PoE 4K=6.72, 2MP/4MP= 6.24w; 24 VAC 4K=7.9, 2MP/4MP= 7.6W Outdoor: PoE 4K=12.72, 2MP/4MP= 11.8w; 24 VAC 4K=13.2, 2MP/4MP= 12.9W |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC or 24 VDC |
| Privacy Zones | 8 |
| Resolution Options | 1920 x 1080 (1080p) 16:9 1664 x 936 (HD+) 16:9 1280 x 720 (720p) 16:9 1024 x 576 (PAL+) 16:9 960 x 544 (qHD) 16:9 816 x 464 16:9 640 x 360 (nHD) 16:9 480 x 272 16:9 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streaming |
| Weight | 0.97KG (2.14 Ibs) |
| Fonctions de la caméra | Flex Gen4 2MP, 4MP, 8MP Mini-Domes |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | Person, Bicycle, Bus, Car, Motorbike, Train, Truck |
| Day/Night | True Day/Night CF Removal |
| Dimensions | Ø123mm x 107mm (4.85 in x 4.21 in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Field of View | Field of View Wide (H/V): 103°/74° Field of View Telephoto (H/V): 33°/25° |
| Focal Length | 2.7-13.5mm |
| Focus Control | One Touch Auto-Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Imager | 1/2.8” Sony IMX335 CMOS |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 4MP @ 30fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.11 Lux; B/W, 1/4s, 30 IRE, AGC: 0.06 Lux; W/IR: 0.0 Lux |
| Motion Detection | 3 zones |
| ONVIF Compliant | Profiles S |
| Operating Temperature | Indoor: -10°C to +60°C; Outdoor: -50°C to +60°C |
| Outdoor Rating | IP66/IP67 |
| Power Draw | Indoor: PoE 4K=6.72, 2MP/4MP= 6.24w; 24 VAC 4K=7.9, 2MP/4MP= 7.6W Outdoor: PoE 4K=12.72, 2MP/4MP= 11.8w; 24 VAC 4K=13.2, 2MP/4MP= 12.9W |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC or 24 VDC |
| Privacy Zones | 8 |
| Resolution Options | 2560 x 1920 (5MP) 4:3 2560 x 1440 (4MP)*1 16:9 1920 x 1080 (1080p) 16:9 1664 x 936 (HD+) 16:9 1280 x 720 (720p) 16:9 1024 x 576 (PAL+) 16:9 816 x 464 16:9 800 x 600 (SVGA) 4:3 800 x 448 16:9 640 x 360 (nHD) 16:9 480 x 272 16:9 *default resolution |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streaming |
| Weight | 0.97KG (2.14 Ibs) |
| Fonctions de la caméra | Flex Gen4 2MP, 4MP, 8MP Mini-Domes |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | Person, Bicycle, Bus, Car, Motorbike, Train, Truck |
| Day/Night | True Day/Night CF Removal |
| Dimensions | Ø123mm x 107mm (4.85 in x 4.21 in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Field of View | Field of View Wide (H/V): 95°/53° Field of View Telephoto (H/V): 49°/28° |
| Focal Length | 3.6-11mm |
| Focus Control | One Touch Auto-Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Imager | 1/1.8” Sony IMX334 CMOS |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 8MP @ 15fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.2 Lux; B/W, 1/4s, 30 IRE, AGC: 0.11 Lux; W/IR: 0.0 Lux |
| Motion Detection | 3 zones |
| ONVIF Compliant | Profiles S, G, M |
| Operating Temperature | Indoor: -10°C to +60°C; Outdoor: -50°C to +60°C |
| Outdoor Rating | IP66/IP67 |
| Power Draw | Indoor: PoE 4K=6.72, 2MP/4MP= 6.24w; 24 VAC 4K=7.9, 2MP/4MP= 7.6W Outdoor: PoE 4K=12.72, 2MP/4MP= 11.8w; 24 VAC 4K=13.2, 2MP/4MP= 12.9W |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC or 24 VDC |
| Privacy Zones | 8 |
| Resolution Options | 3840 x 2160 (4K) 16:9 3264 x 1840 (6MP)16:9 2688 x 1520 (4MP)16:9 1920 x 1080 (1080p) 16:9 1664 x 936 (HD+) 16:9 1280 x 720 (720p) 16:9 1024 x 576 (PAL+) 16:9 960 x 544 (qHD) 16:9 816 x 464 16:9 640 x 360 (nHD) 16:9 480 x 272 16:9 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streaming |
| Weight | 0.97KG (2.14 Ibs) |
N° de référence des caméras
| N° modèle | |
| IFS02-D12-ITA4 | Illustra Flex Gen4 2MP Mini-Dome, 2.7-13.5mm, Indoor, IP67, IK10, TDN, SMK, TWDR |
| IFS04-D12-ITA4 | Illustra Flex Gen4 4MP Mini-Dome, 2.7-13.5mm, Indoor, IP67, IK10, TDN, SMK, TWDR |
| IFS08-D13-ITA4 | Illustra Flex Gen4 8MP Mini-Dome, 3.6-11mm, Indoor, IP67, IK10, TDN, SMK, TWDR |
| IFS02-D12-OIA4 | Illustra Flex Gen4 2MP Mini-Dome, 2.7-13.5mm, Outdoor, IP67, IK10, TDN w/IR, TWDR |
| IFS04-D12-OIA4 | Illustra Flex Gen4 4MP Mini-Dome, 2.7-13.5mm, Outdoor, IP67, IK10, TDN w/IR, TWDR |
| IFS08-D13-OIA4 | Illustra Flex Gen4 8MP Mini-Dome, 3.6-11mm, Outdoor, IP67, IK10, TDN w/IR, TWDR |
What's in the box
In the box – Indoor Dome
• 1 x Flex Gen 4 Dome Camera
• 1 x Torx T10 Security L-Key

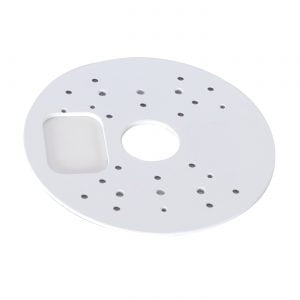

• 1 x Adaptor Plate (for use with pendant cap and electrical box)
• 3 x 18mm screws & 3 x Plastic screw anchors
• 2 x 8 mm screws (for use with the pendant cap)
• 1 x Desiccant bag
• 1 x Plastic side cover
• 1 x Waterproof cap
• 1 x Waterproof rubber insert
• 1 x Printed Regulatory Document & 1 x Printed QSG
• 1 x Mounting template sticker
In the box – Outdoor Dome
• 1 x Flex Gen 4 Dome Camera
• 1 x Torx T10 Security L-Key
• 1 x Adaptor Plate (for use with pendant cap and electrical box)
• 3 x 18mm screws & 3 x Plastic screw anchors
• 2 x 8 mm screws (for use with the pendant cap)
• 1 x Desiccant bag
• 1 x Plastic side cover
• 1 x Waterproof cap
• 1 x Waterproof rubber insert
• 1 x Printed Regulatory Document
