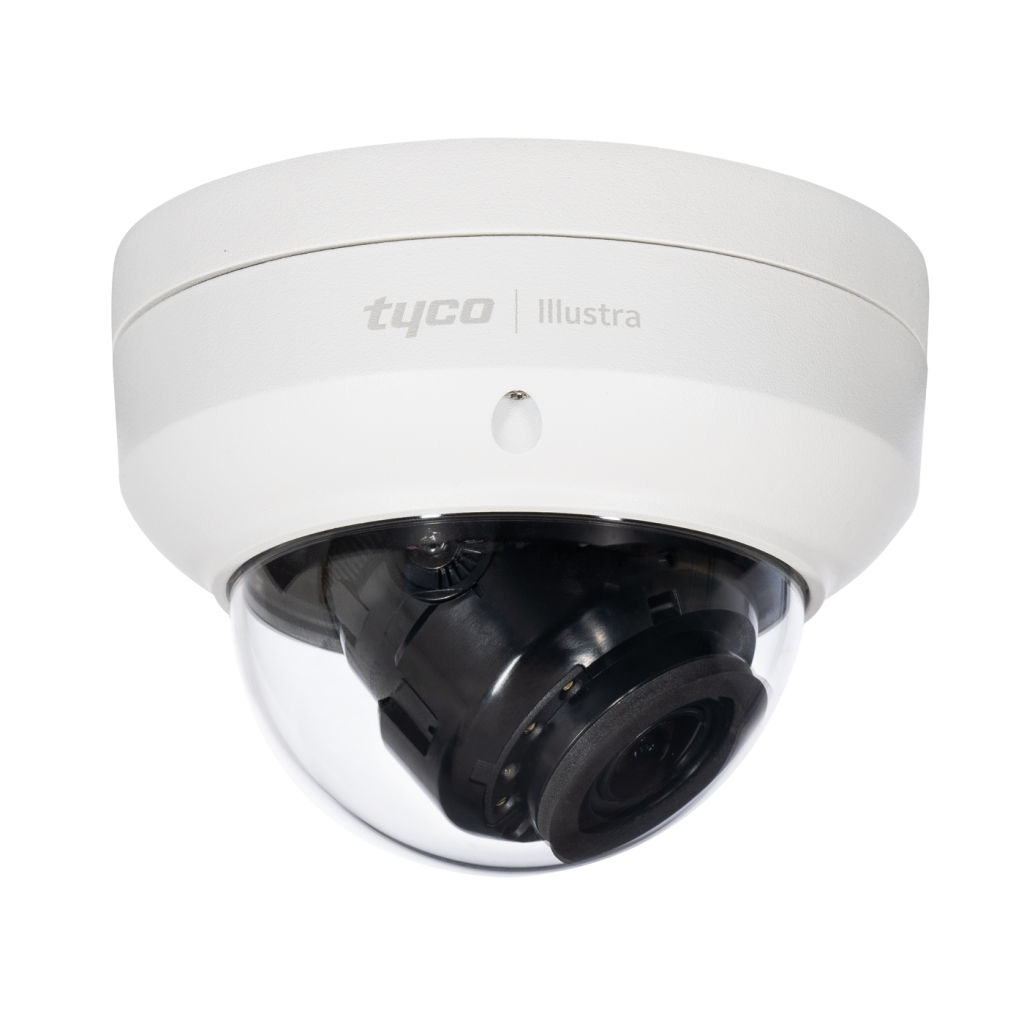

Flex Gen3 8MP (4K) Outdoor Mini-Dome

Flex Gen3 8MP (4K) Outdoor Mini-Dome

Efficiently manage bandwidth resources while streaming high-quality video

The versatile Illustra Flex Mini-Dome is a True Day/Night camera that provides 4K resolution for high-quality images in outdoor environments. The P-Iris lens delivers clear video in changing light. Also, the outdoor Flex Mini-Dome features built-in IR illuminators to produce clear images at an effective distance in a variety of low light conditions.

Camera Features

Easy to install with engineer friendly accessories and WiFi configuration
Built-in tamper detection for scene change, lens obscuration or blinding light.
Increased IR Distance across the range
High speed detection with 60FPS in 2MP resolution
4K resolution provides true HD quality images with video analytics along with improved WDR
Equipped with Illustra Video Intelligence Analytics
VideoEdge® TrickleStor technology for edge-based failover redundancy
Day/Night functionality allows quality video recording in low light conditions
Illustra® IntelliZip offers powerful video compression technology for bandwidth management
Included in the Johnson Controls Cyber Solutions Product Security Program
As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies

Contact / Request a Quote

First name

Last name

Company Name

Country

State/Region

Job Function

Business Phone

Nature of Inquiry

Please identify the reason of your inquiry

Email Consent

Yes, I wish to receive marketing emails about security solutions from Johnson Controls Security

No, I do not wish to receive marketing emails about security solutions from Johnson Controls Security

Privacy Notice

By completing the above form and checking this box you confirm that you have read, understood and accepted our Privacy terms as well as our Cookie terms. Read our Privacy Policy

Camera Features	Flex Gen3 8MP (4K) Outdoor Mini-Dome
Audio	Yes, utilising cable accessory
Alarm Input/Output	One Out/One In, utilising cable accessory
Corridor Mode	Yes, Mirror & Flip
Digital Noise Reduction	2D&3DNR
Dimensions	145 x 106.5 mm (5.70 x 4.19 in)
Ethernet	RJ-45(10/100/1000BASE-T)
Field of View	Wide Angle: 111.66°/62.53° Telephoto: 46.69°/26.36°
Focal Length	4.17 ~ 9.48mm
Focus	Motorized varifocal, P-Iris
Focus Control	Simple focus, (software controls: one-touch AF and manual control)
Gain Control	Automatic & Manual (3dB increments)
H.264	Yes
H.265	Yes
Housing Color	White
Imager	1/1.8” 8.3MP CMOS
IntelliZip	Yes
IR	Adaptive IR
IR Distance	Up to 40m (131.23ft)
Lens Type	Varifocal
Max Frame Rate	60fps
Minimum Illumination	Color: min 0.27 lux (1/30sec, 30IRE) BW: 0.027Lux
MJPEG	Yes
Motion Detection	Yes, 3 Zones
Onboard Storage	Micro SD/SDHC/SDXC 1slot 512GB
ONVIF Compliant	Profile S
Operating Temperature	-40°C ~ +50°C (-40°F ~ +122°F) Up to 5 concurrent hours at up to 60°C
Outdoor Rating	IP67
Power Draw	24 VAC: Max 14.0W PoE: Max 12.95W
Power Input	24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1)
Privacy Zones	9
Resolution Options	3840x2160/ 3264x1840/ 2688x1520/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 960x544/ 816x464/ 640x360/ 480x272
Supported Protocols	TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
S/N Ratio	50db
Vandal-Resistant	IK10
Video Streams	3
White Balance	Automatic Wide, Automatic Normal (Default), Manual
Wide Dynamic Range	True WDR 120db Technologies
