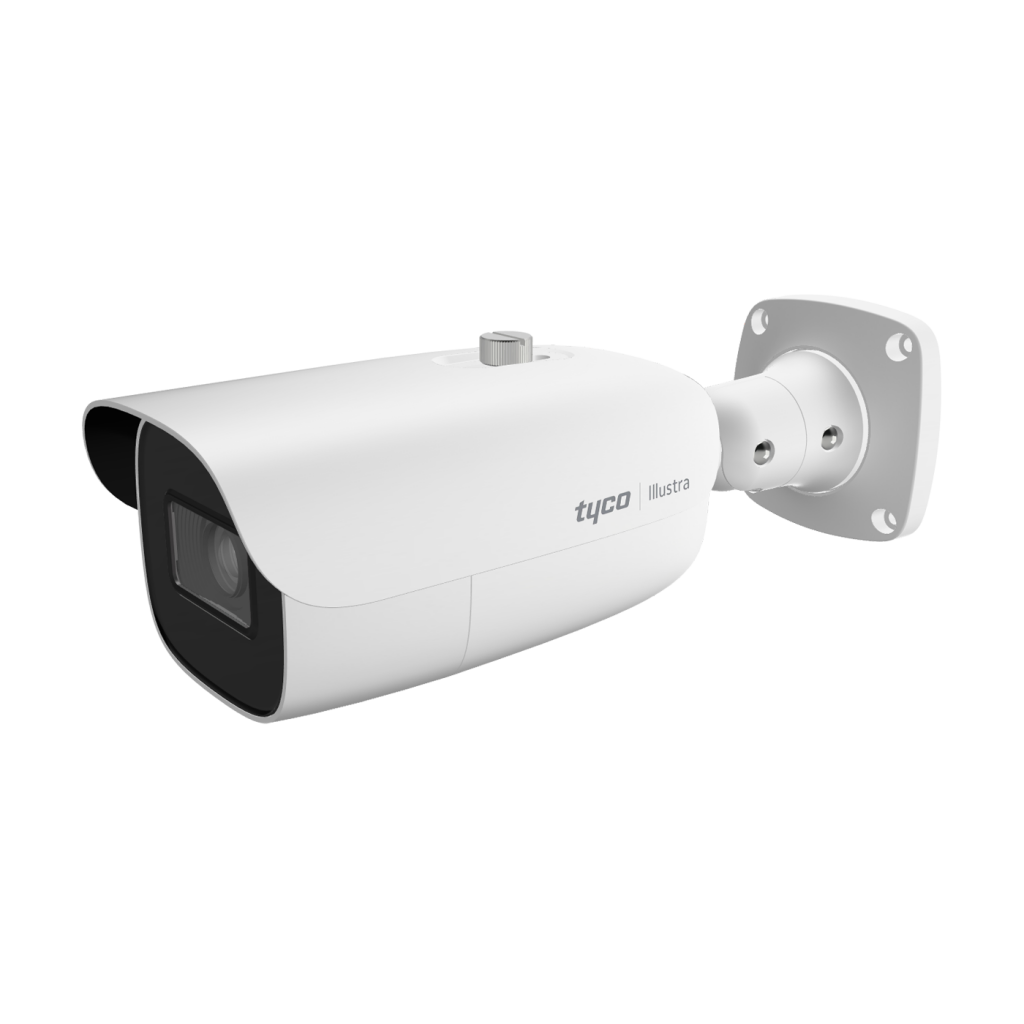

Standard 2MP Motorized V/F IR Smart Bullet Network Camera

The Illustra 2MP Motorized V/F IR Smart Bullet Camera by Tyco comes with several intelligent functions in-built for high-quality video surveillance. Additionally, this HD camera comes with a rich feature-set that includes True WDR, PoE, and 3D DNR to meet a wide variety of video surveillance applications capturing high quality colored images in back light environment.

Camera Features

  • 2MP resolution (1920 × 1080), H.265
  • True day / night
  • Up to 70m IR distance with Smart IR
  • Auto focus by motorized V/F lens
  • True WDR, up to 120dB
  • 3D DNR, HLC & BLC
  • Defog
  • Triple streams
  • Smart codec by ROI
  • 2-way audio & alarm in/out
  • Onboard storage
  • Advanced intelligent video analytics
  • Face detection / capture
  • Smart non-false alarm
  • IP67 / IK10
Camera Features Standard Gen 2 – 2MP Motorized V/F IR Smart Bullet Network Camera
AudioLine IN × 1, Line OUT × 1
Alarm Input/OutputAlarm IN x 1, Alarm OUT x 1
Day/NightIR cut filter with auto switch
DefogYes
Digital Noise Reduction3D DNR
Dimensions278.7× 95.9× 94.4
Ethernet1 RJ45 10M/100M self-adaptive ethernet port
Field of View103° / 70.5°
Face DetectionDetection and Capture
FocusAuto Focus
Focus ControlMotorized
H.264Base Line / Main Profile / High Profile
H.265Main Profile @ Leve4.1 High Tier
Image Orientation SettingsTime stamp, text overlay, flip & mirror, ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, white balance, video rotation, Scheduled profile settings, AGC etc.
IR DistanceUp to 70m
Lens TypeΦ 14
Minimum Illumination0.005 Lux @ F1.2, AGC ON; 0.008 Lux @ F1.6, AGC ON;
Motion DetectionYes
Multiple StreamingMain: 60Hz : 1080P( 1 - 30fps ) / 720P( 1 - 30fps ) 50Hz : 1080P( 1 - 25fps ) / 720P( 1 - 25fps ) Sub Stream: 60Hz:720P/D1/CIF /480×240 (1~30fps) 50Hz:720P/D1/CIF/480×240 (1~25fps) Third Stream: 60Hz:D1/CIF /480×240 (1~30fps) 50Hz:D1/CIF/480×240 (1~25fps)
Network ProtocolTCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, SMTP, FTP, SNMP, UPnP, Unicast, Multicast, ICMP, HTTP, HTTPS, DNS, DDNS, RTP, RTCP, IGMP, 802.1X, QoS, IPv4, IPv6, Bonjour, ARP
Onboard StorageBuilt-in micro SD card slot, up to 128GB
ONVIF CompliantONVIF Profile (S, G & T), HAPI3, iAPI4
Outdoor RatingIP67
Power Draw< 12W
Power SupplyDC12V / PoE
Resolution Options1080P ( 1920 x 1080 )
720P ( 1280 x 720 )
D1
CIF
480 x 240
Shutter Speed1 s to 1/100,000 s
Simultaneous UsersSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Vandal-ResistantIK10
Video StreamsTriple STream
Weight≈ 1.15kg
White BalanceSupports
Wide Dynamic RangeTrue WDR, up to 120dB

Camera Part Numbers

Model No.
ISV-B02M014S-NStandard 2MP Motorized V/F IR Smart Bullet Network Camera
