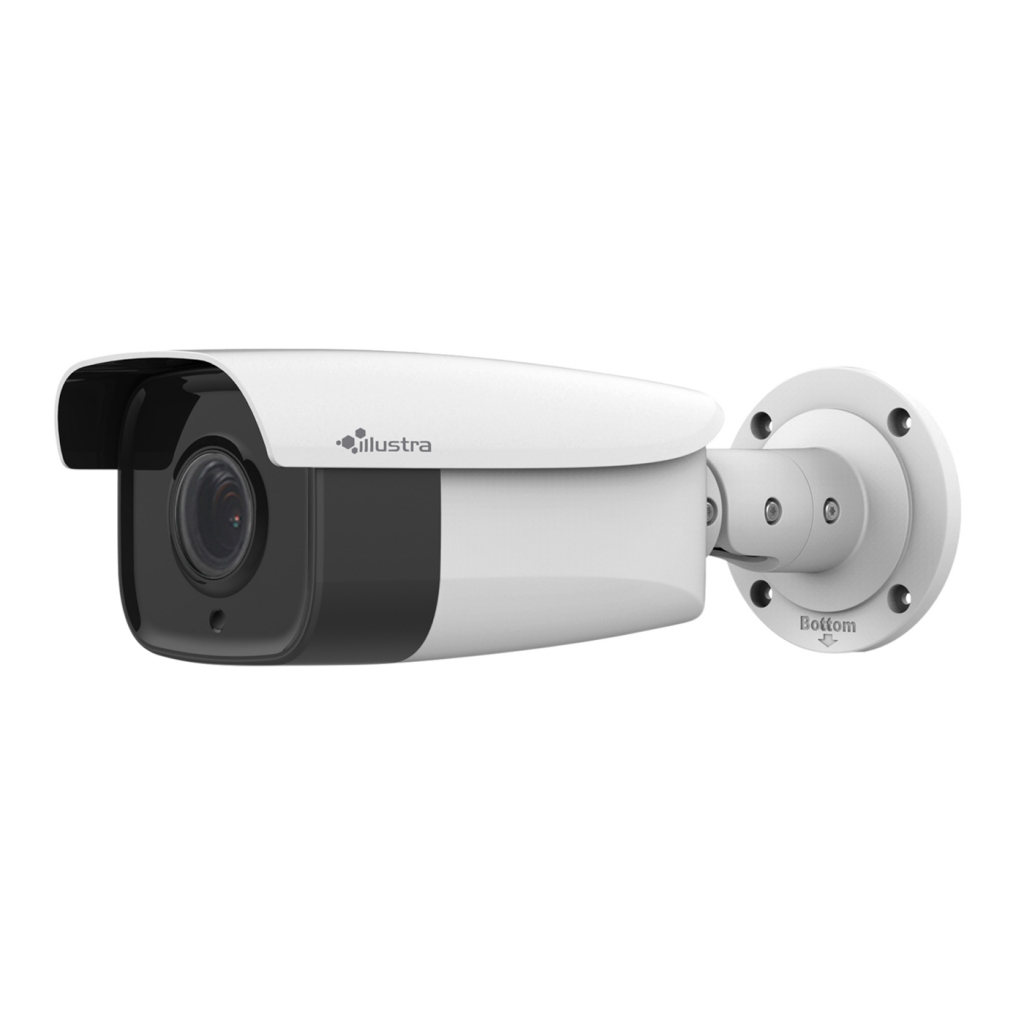

Standard Gen 1 – 2MP IP Bullet Camera

Please choose the product part number

ISS02B3ONWIT-B

2MP Bullet with 2.8-12mm Motorized Lens, 50m IR, TWDR

0

You might want one of these...

You might want one of these...

You might want one of these...

Continue Start over

Standard Gen 1 - 2MP IP Bullet Camera

The Illustra Standard IR Bullet Camera comes with a long range 2.8- 12mm motorized zoom lens and has several intelligent functions in-built for high-quality video surveillance. Additionally, this HD Camera comes with a rich feature-set that includes 140dB WDR, PoE, and 3D DNR to meet a wide variety of Video Surveillance applications capturing high quality colored images in back light environment.

Camera Features

  • 1/1.8” Progressive Scan CMOS
  • 2.8 – 12mm Motorized Varifocal Lens
  • 140dB True WDR
  • 3D DNR
  • Up to 50m IR range
  • Alarm I/O
  • DC12V/PoE
  • IP67
  • IK10
  • Resources
  • Specification
  • Part Numbers

Data Sheets

Camera Features Standard Gen 1 – 2MP IP Bullet Camera
Audio2 input (line in, 3.5 mm), 1 output (3.5 mm)
Alarm Input/Output2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
APIONVIF Supports PROFILE S, PROFILE G
Backlight CompensationYes - BLC/3D DNR
Day/NightIR Cut Filter
DefogYes
Digital Noise Reduction3D DNR
DimensionsØ144 × 347 mm (Ø5.7” × 13.7”)
Effective Pixels2MP 1920 × 1080
Environment RatingIP67
Ethernet1 RJ45 10M/100M/1000M Ethernet port
Field of View103.3°(wide)-38.6°(tele)
Face DetectionYes
Focal Length2.8 to 12 mm Motorized zoom Lens
H.264Yes: Main Profile / High Profile
H.265Yes: Main Profile
Imager1/1.8” Progressive Scan CMOS
Image Orientation SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance
Intelligent Video AnalyticsLine crossing detection, intrusion detection, region entry detection, region exit detection, unattended baggage detection, object removal detection, Face Detection
IR-
IR DistanceUp to 50M
Lens Type2.8 – 12mm Motorized Varifocal Lens
Max ApertureF1.6 to F1.65
Minimum IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Motion DetectionYes
Multiple StreamingMain Stream Up to 60fps (1920 × 1080, 1280 × 960, 1280 × 720) @ 60Hz Sub Stream Up to 30fps (704 × 480, 640 × 480) @ 60Hz Third Stream Up to 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480,640 × 480) @ 60Hz
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Onboard StorageBuilt-in micro TF/SD/SDHC/SDXC slot, up to 256 GB
Online ConnectionYes - IE8+, Mozilla Firefox 30.0+, Google Chrome 31.0+, Safari 8.0+
ONVIF CompliantYes
Outdoor RatingIP67
Power Draw12 VDC, 1.3 A, max. 15W PoE (802.3at, 42.5 V to 57 V), 0.4A
Power Supply12 VDC / PoE (802.3at, class 4)
Shutter Speed1/3 s to 1/100,000 s, Slow Shutter supported
Simultaneous UsersUp to 20 channels
Vandal-ResistantIK10
Video StreamsTriple Stream
Weight2.45 kg (5.40 lb.)
Wide Dynamic Range140dB

Camera Part Numbers

Model No.
ISS02B3ONWIT-B2MP Bullet with 2.8-12mm Motorized Lens, 50m IR, TWDR
