Illustra Pro Gen4
20MP & 32MP
Motorized Multisensor
Omni-directional, high-resolution coverage
with edge intelligence driven by deep learning AI
Pro Gen4 20MP & 32MP Motorized Multisensor
Please choose the product part number
IPR20-M12-OIA4
Illustra Pro Gen4 20MP (5MP x4) Multisensor, 2.7-13.5mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC
0
IPR32-M13-OIA4
Illustra Pro Gen4 32MP (8MP x4) Multisensor, 3.6-11mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC
0
The Illustra Pro Multisensor cameras are designed to provide complete coverage with a lower total cost of ownership (TCO) when compared to the use of multiple cameras. The Multisensor cameras are equipped with deep learning AI and the ability to accurately classify many human and vehicle targets within a scene.
Available in 20MP and 32MP models, the Illustra Pro Multisensor cameras push the boundaries of image quality at low bandwidth in low light and challenging conditions with superior WDR, defog and built-in IR illuminators. Four motorized, individually repositionable varifocal lenses utilizing one network connection and one camera license means a drastically lower cost of deployment.
Camera Features
- 20MP & 32MP resolution provides high quality images during live viewing and forensic search
- Built in deep learning AI (Quad Edge AI) provides real time alerts and forensic search capabilities independently for each sensor.
- Four remotely repositionable lenses provide 360 degree coverage
- Integrated 30m (98ft) infrared vision
- Smart Defog & SmartWDR
- TrickleStor provides edge-based failover redundancy via encrypted video
- Improved operational tolerances for extreme conditions
- 5 year warranty
- Accessori
- Risorse
- Specification 20MP
- Specification 32MP
- Codici articolo

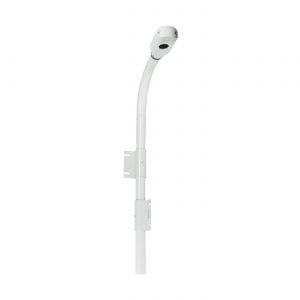

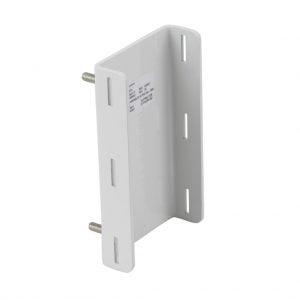

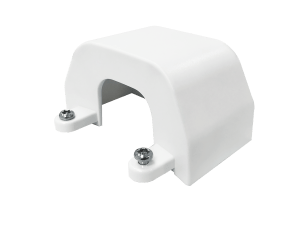

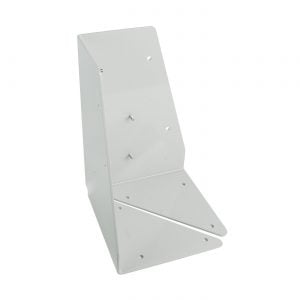

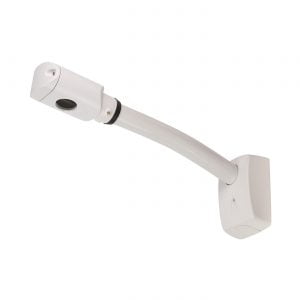

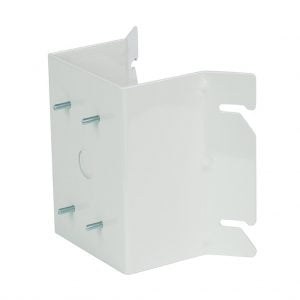

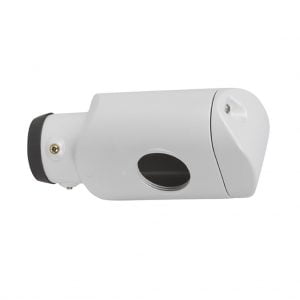

Camera Accessories
Guides
A&E Specifications
Schede tecniche
Firmware
Manuali
Press Release
Quick Start Guide
Informazioni normative
Note sulla versione
| Caratteristiche della telecamera | Pro Gen4 20MP & 32MP Motorized Multisensor |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2 input, 2 output |
| Day/Night | True Day/Night CF Removal |
| Dimensions | ø299mm x 169mm (ø11.8in x 6.7in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Environment Rating | RoHS; WEEE |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | Field of View Wide (H/V): 103°/74° Field of View Telephoto (H/V): 33°/25° |
| Face Recognition | Yes |
| Focal Length | 2.7-13.5mm |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White - RAL 9003 |
| Imager | Sony IMX335 1/2.8” CMOS image sensor |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| IR Distance | 98ft (30m) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Aperture | f/1.4 (W), f/2.8 (T) |
| Max Frame Rate | 5MP @ 30fps, 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.11 Lux; B/W, 1/4s, 30 IRE, AGC: 0.06 Lux; W/IR: 0.0 Lux |
| MJPEG | Yes |
| Motion Detection | 3 per Sensor |
| Onboard Storage | Built-in Quad Micro SDXC slot up to 2TB per slot; Card not included |
| ONVIF Compliant | Profile S (Future release) |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Outdoor Rating | IP66 |
| Power Input | Power over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3W |
| Privacy Zones | 8 Per Sensor |
| Resolution Options | 2560x1920 (5MP) 4:3 2560x1444 (4MP) 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 800x600 (SVGA) 4:3 816x464 156:9 640x360 (nHD) 16:9 480x360 4:3 480x272 16:9 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Quad Streaming (per sensor) |
| Weight | 5.7Kg (12.6 lbs) |
| Caratteristiche della telecamera | Pro Gen4 20MP & 32MP Motorized Multisensor |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2 input, 2 output |
| Day/Night | True Day/Night CF Removal |
| Dimensions | ø299mm x 169mm (ø11.8in x 6.7in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Environment Rating | RoHS; WEEE |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | Field of View Wide (H/V): 95°/53° Field of View Telephoto (H/V): 49°/28° |
| Face Recognition | Yes |
| Focal Length | 3.6 -11mm |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White - RAL 9003 |
| Imager | Sony IMX334 1/1.8” CMOS image sensor |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| IR Distance | 98ft (30m) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Aperture | f/1.5 (W), f/2.8 (T) |
| Max Frame Rate | 8MP @ 30fps, 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.2 Lux; B/W, 1/4s, 30 IRE, AGC: 0.11 Lux; W/IR: 0.0 Lux |
| MJPEG | Yes |
| Motion Detection | 3 per Sensor |
| Onboard Storage | Built-in Quad Micro SDXC slot up to 2TB per slot; Card not included |
| ONVIF Compliant | Profile S (Future release) |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Outdoor Rating | IP66 |
| Power Input | Power over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3W |
| Privacy Zones | 8 Per Sensor |
| Resolution Options | 3840x2160 (4K) 16:9 3264x1840 (6MP) 16:9 2688x1520 (4MP) 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Quad Streaming (per sensor) |
| Weight | 5.7Kg (12.6 lbs) |
Codici articolo telecamera
| Modello n. | |
| IPR20-M12-OIA4 | Illustra Pro Gen4 20MP (5MP x4) Multisensor, 2.7-13.5mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC |
| IPR32-M13-OIA4 | Illustra Pro Gen4 32MP (8MP x4) Multisensor, 3.6-11mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC |
